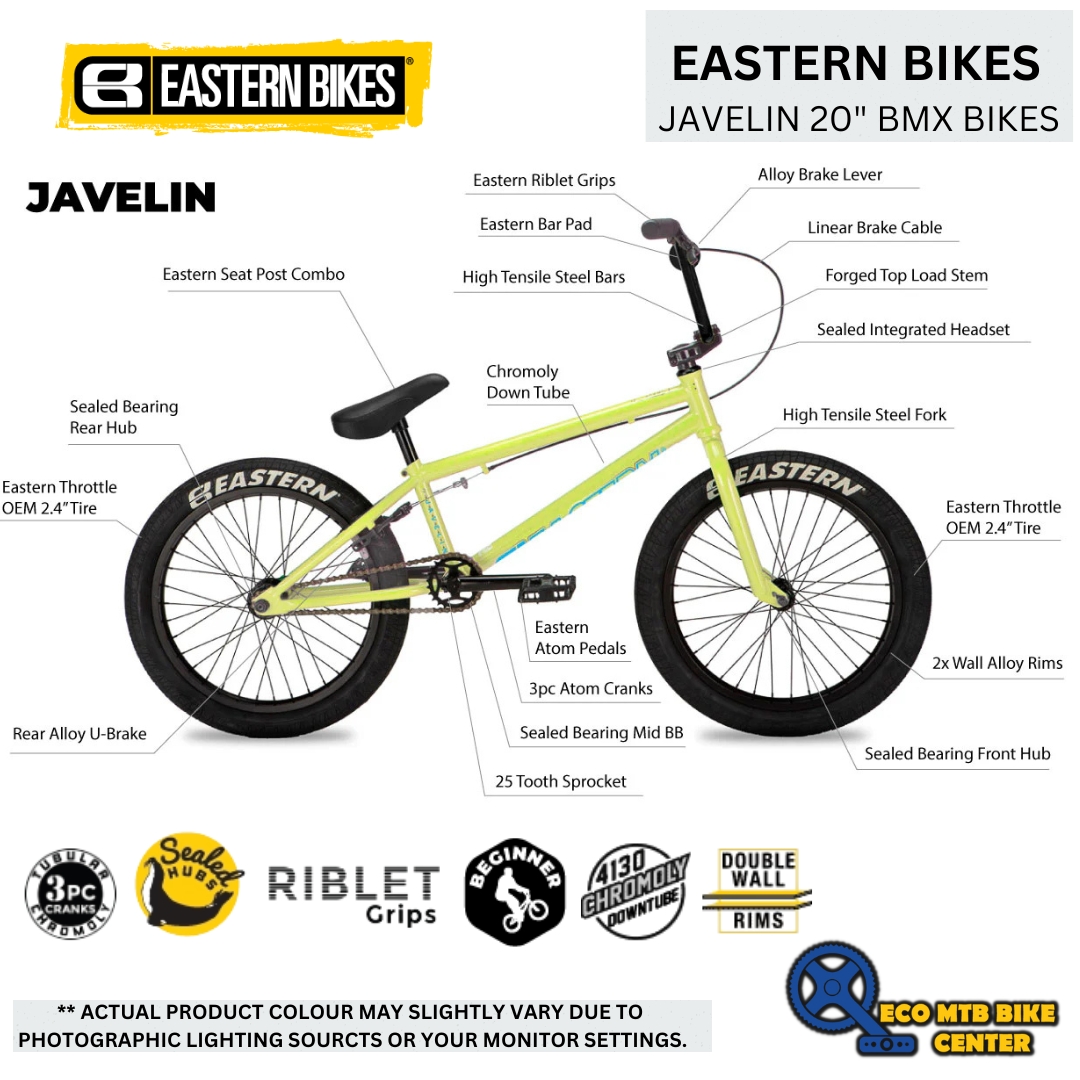

FEATURES
• Chromoly Down Tube & Fork Steerer Tube
• Sealed Front & Rear Hubs
• 3 Piece Tubular Chromoly Atom Cranks
• Mid BB
• Integrated Headset
• Eastern Riblet Grips
• Eastern Atom Pedals
• Eastern Sprocket
• Double Wall Rims

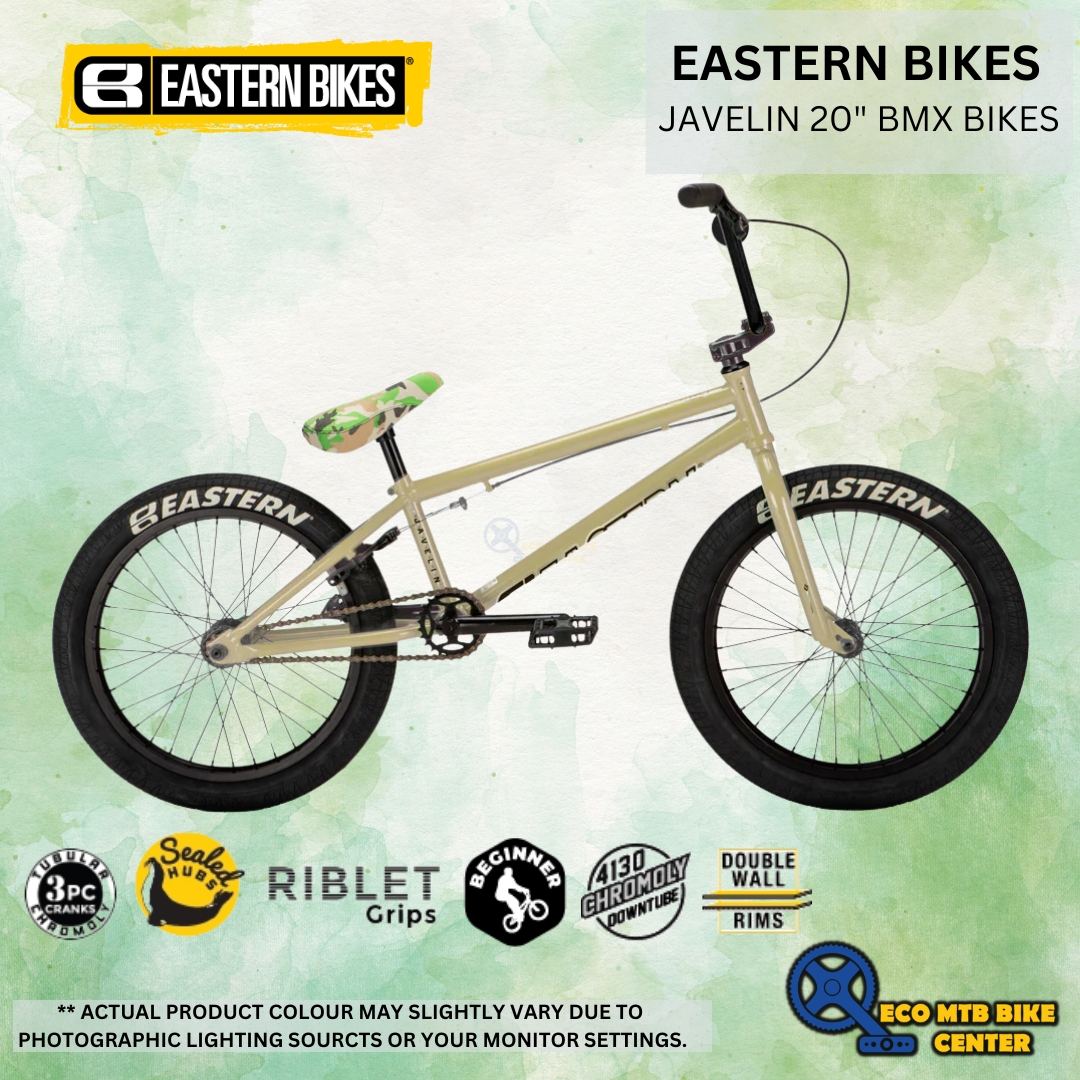

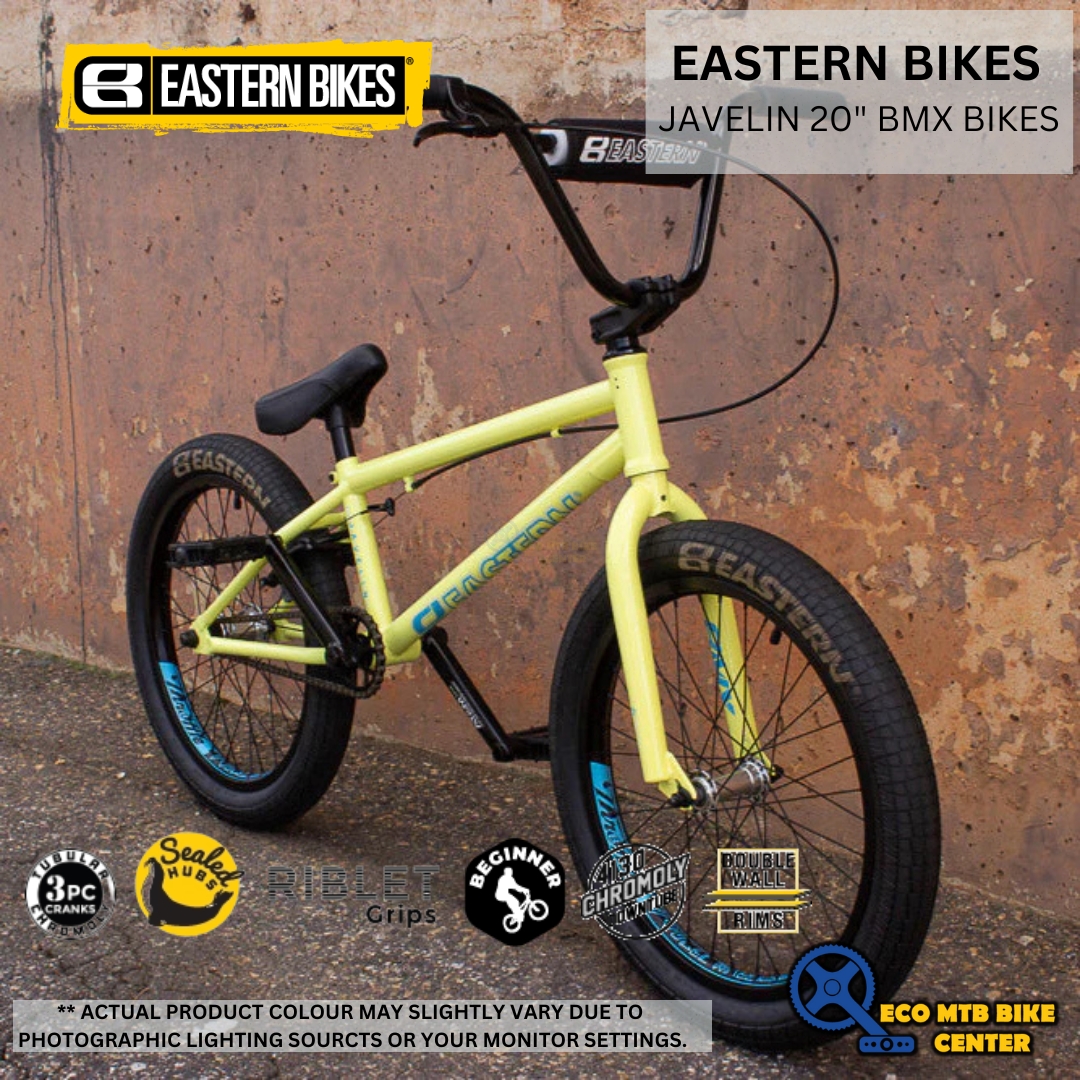

JAVELIN 20"
FRAME

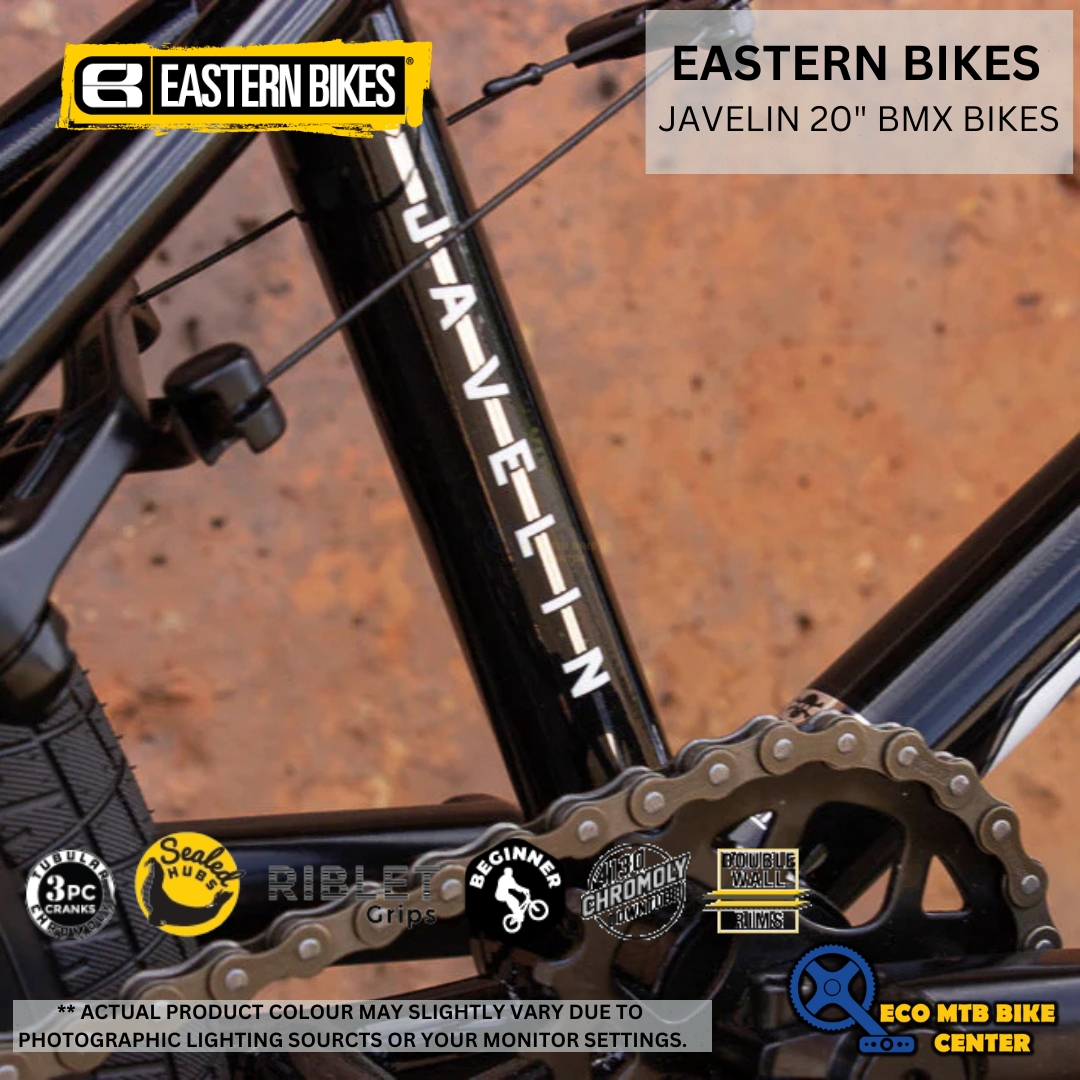

Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset

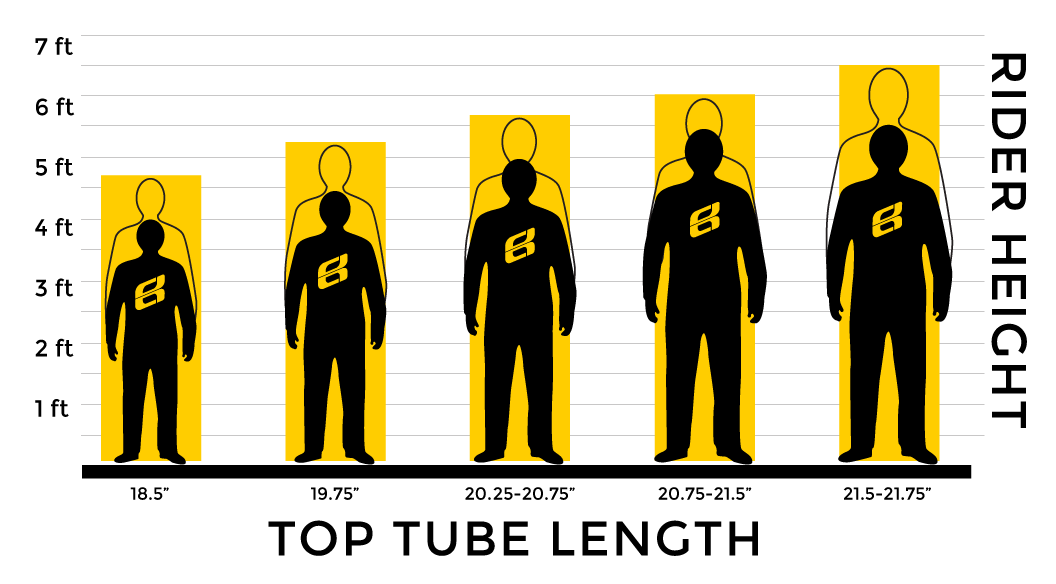

Top Tube Size: 20.5″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame
BARS
Hi-Ten 8.5"Upsweep/Backsweep 12⁰/1⁰
FORK
Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts
Fork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing

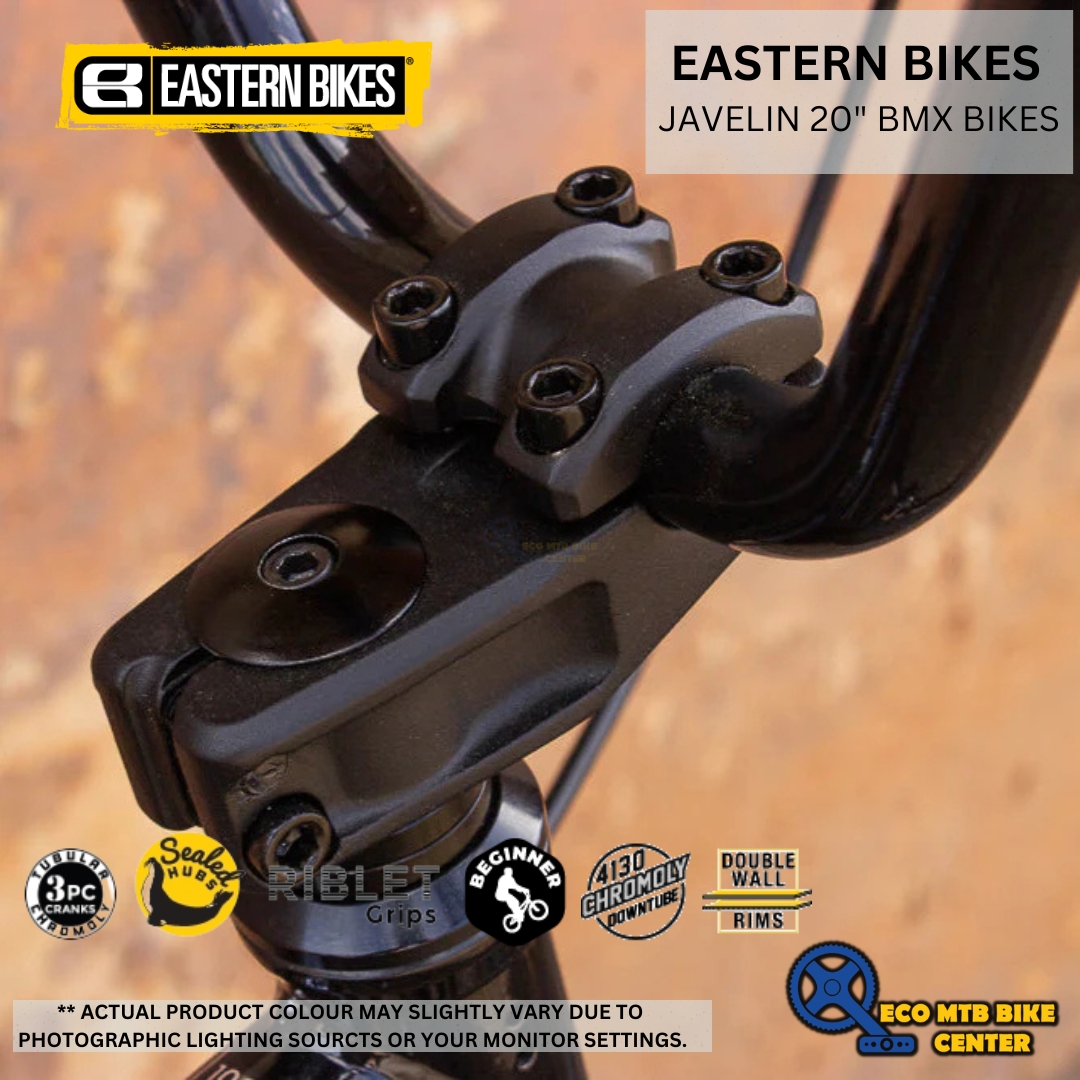

STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips

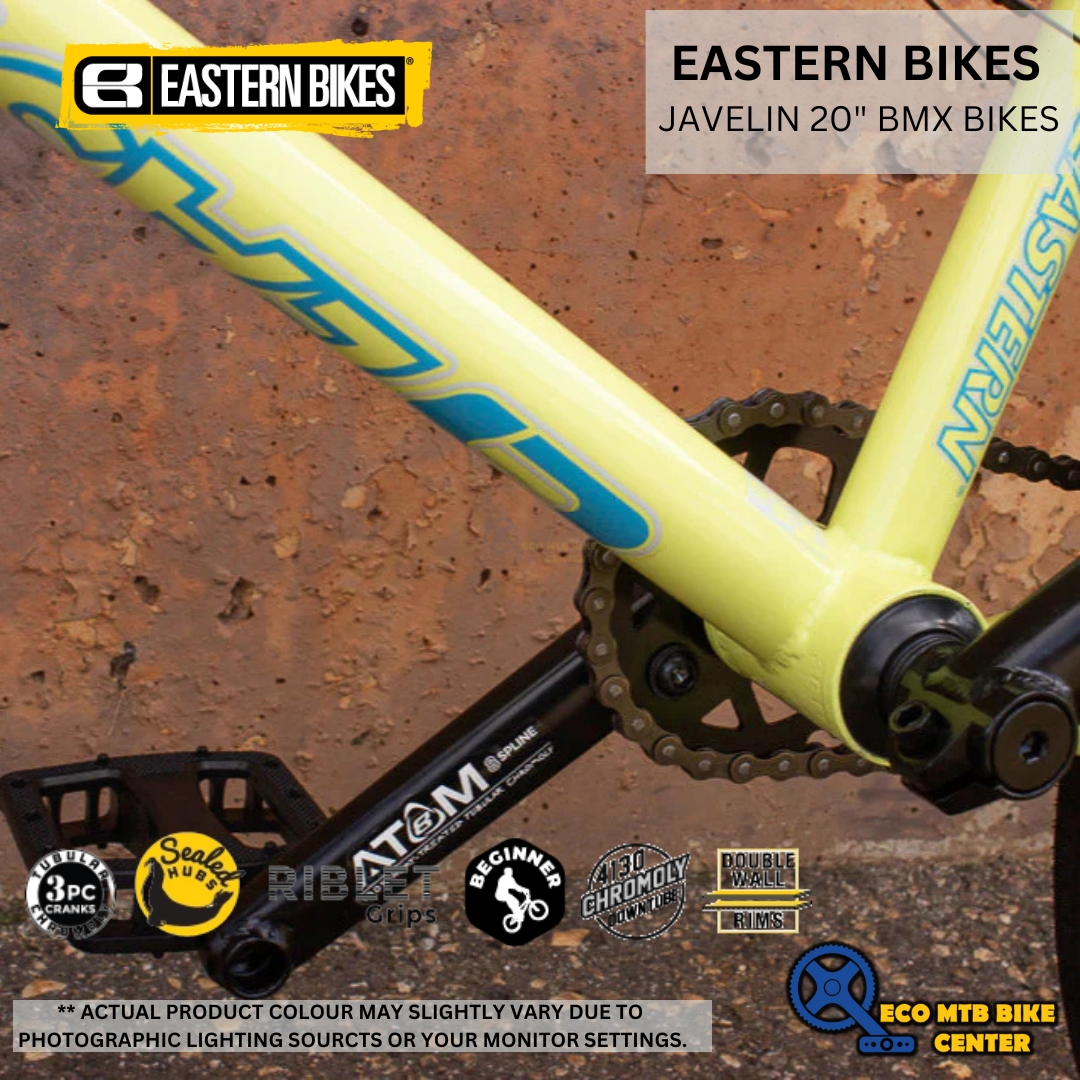

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Atom Plastic Pedal with 9/16" Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Grey Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR

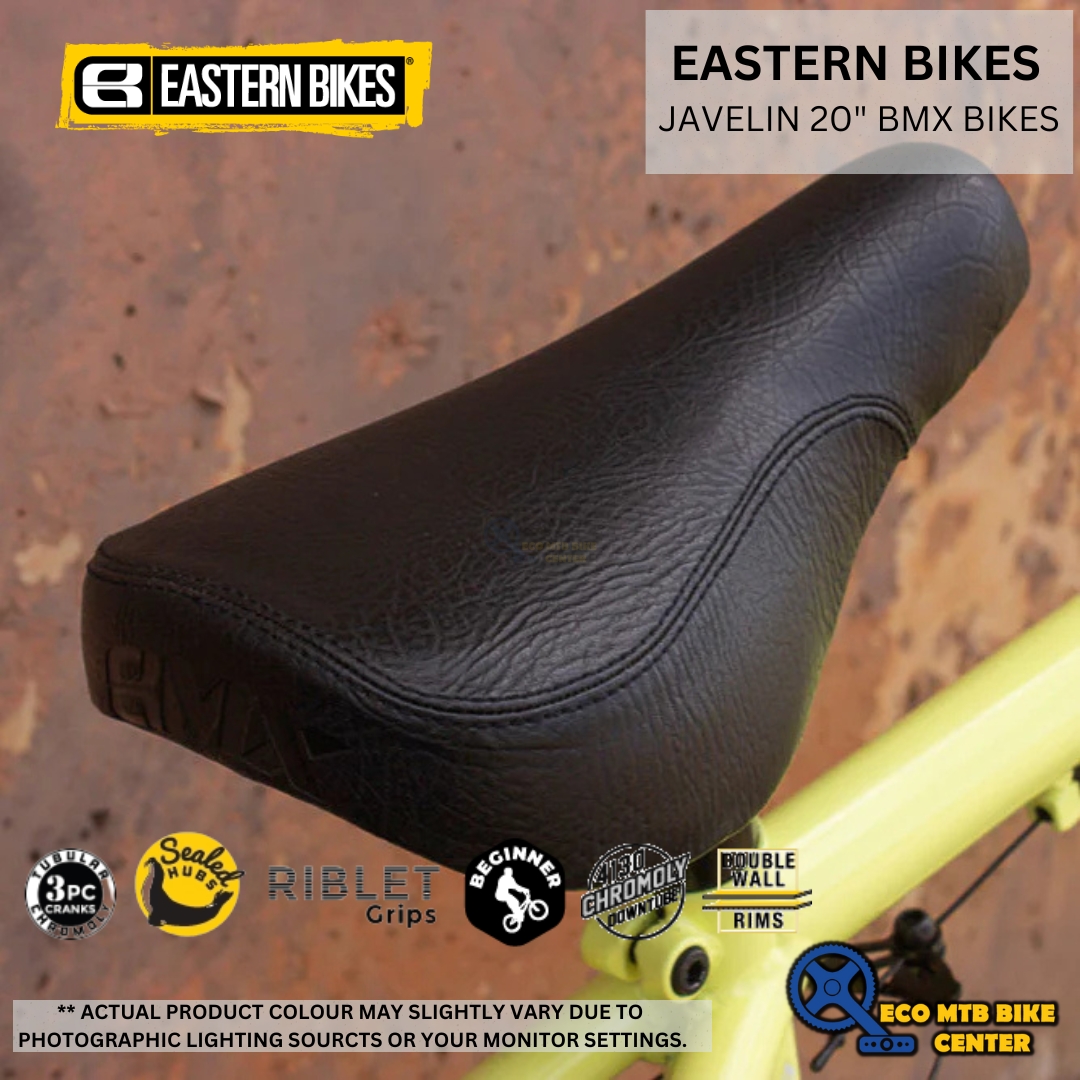

SADDLE Medium Width Seat/ Post Combo
POST Comes with seat
FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

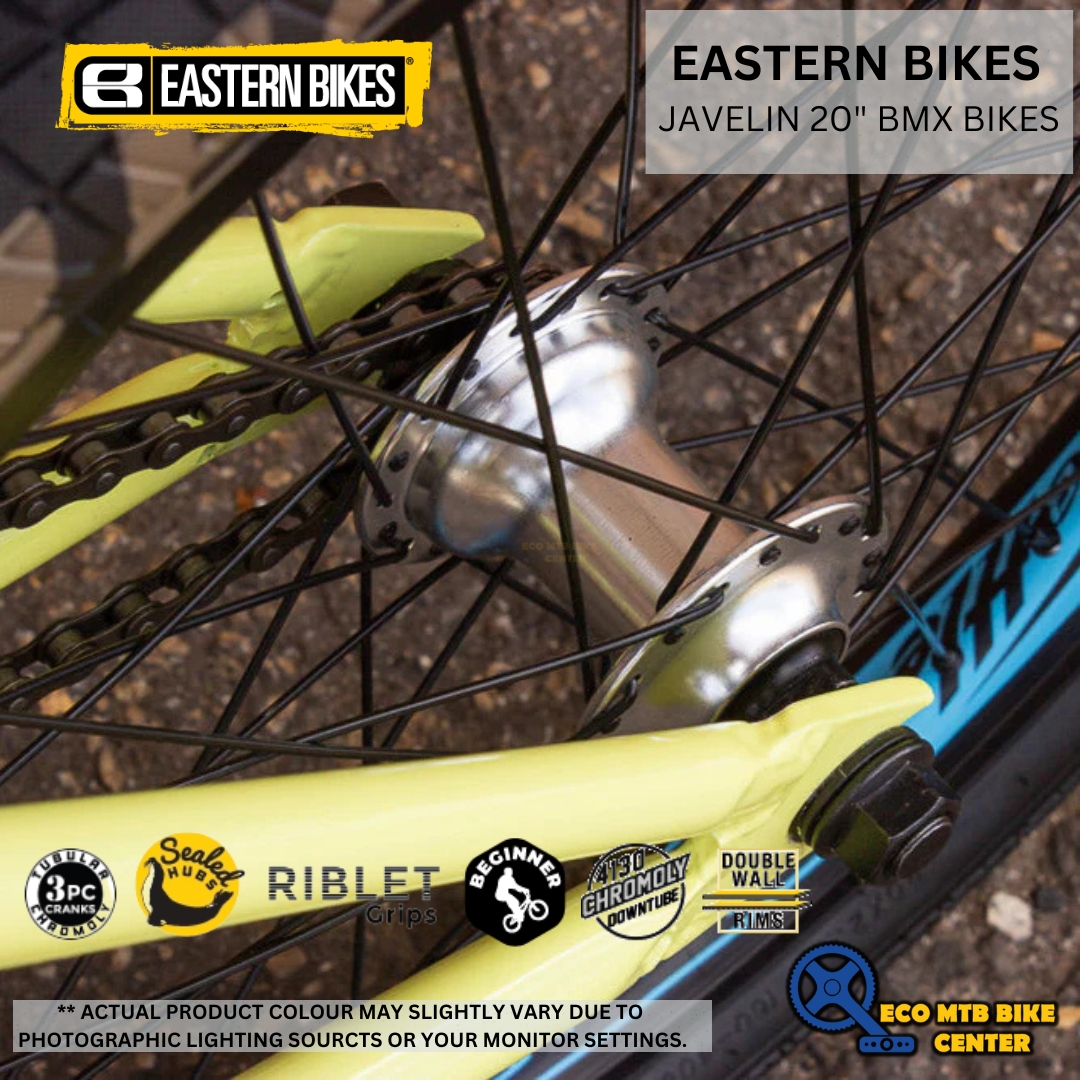

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Driver with Hub
FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes
REAR RIM Alloy, Double Wall, Drilled for 36 Spokes
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE 20 x 2.3 *Specs subject to change
REAR TIRE 20 x 2.3 *Specs subject to change
PEG none
*Bikes are designed for riders 13 years old and up.
