LEWIS CNC Aluminum E-MTB Crankset 155mm - DJI Avinox / ISIS Spline
Product Description:
Premium CNC machined aluminum crankset designed specifically for DJI Avinox e-MTB drive systems. Built with a lightweight skeletonized design and a short 155mm length to minimize pedal strikes on technical trails.
Specifications:
Brand: LEWIS
Material: CNC Machined 7075 Aluminum Alloy

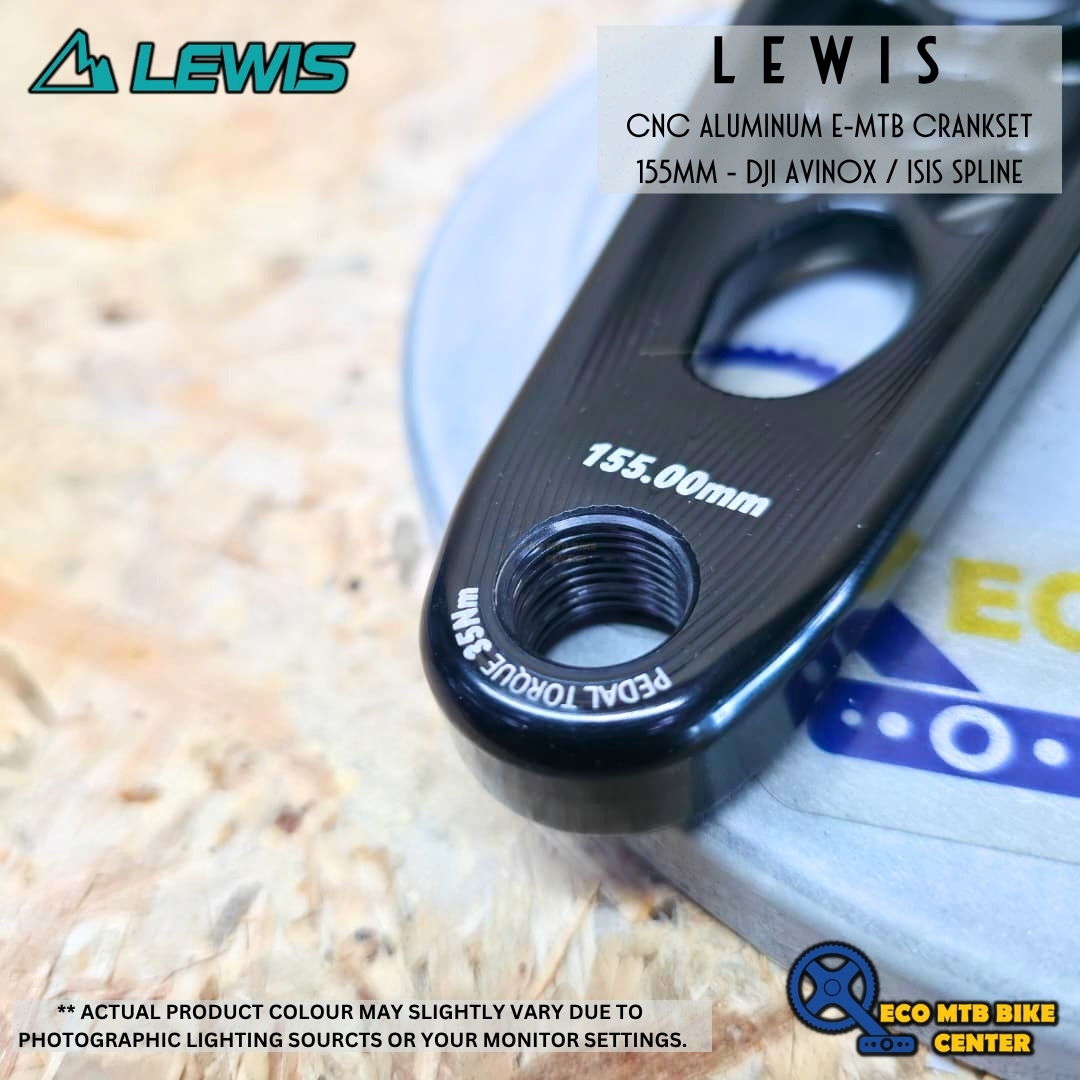

Crank Arm Length: 155.00mm
Q-Factor: [Insert Q-Factor Measurement] mm

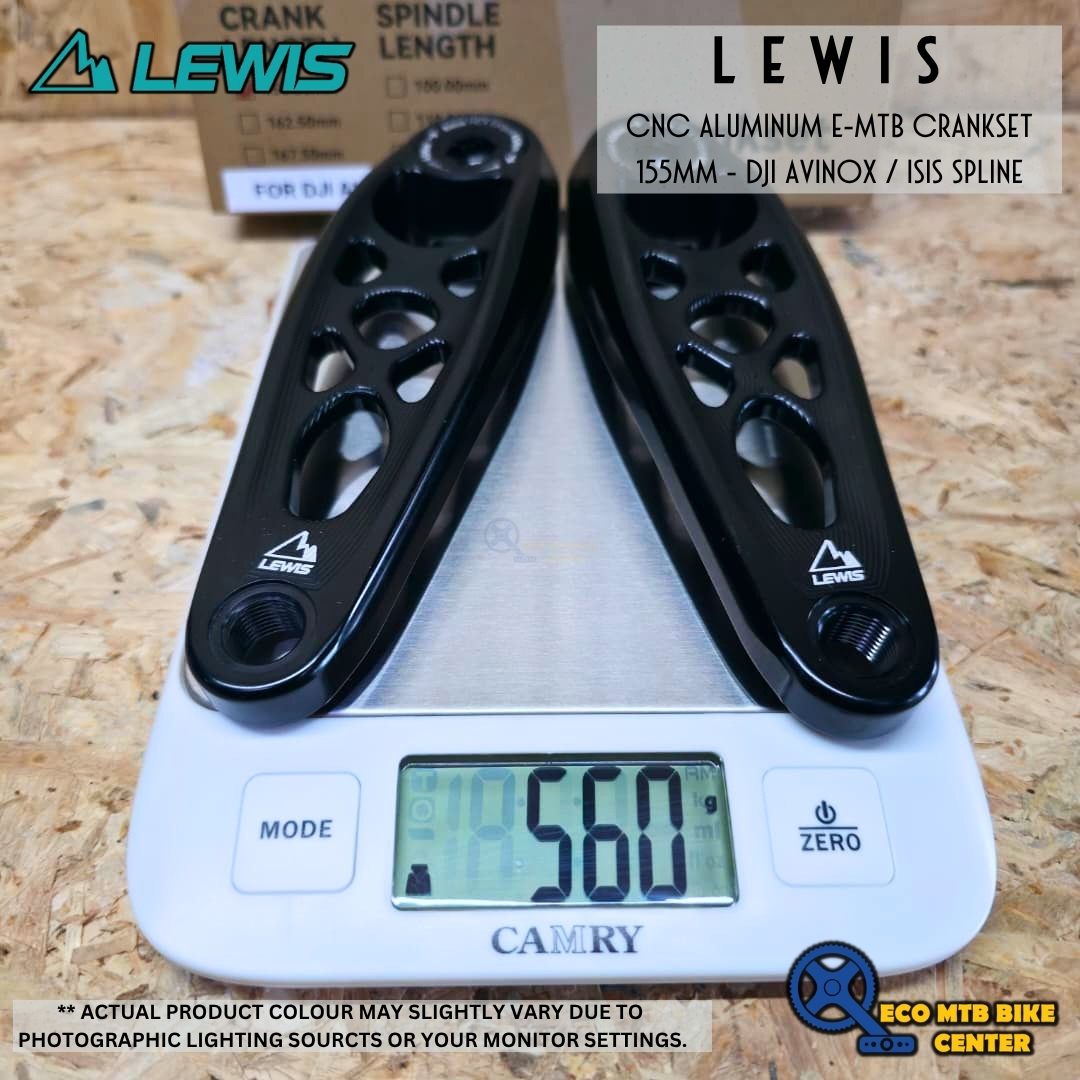

Total Weight: 560g (pair, including bolts)
Color: Anodized Black
Compatibility:
Motor System: DJI Avinox Drive System
Spindle Interface: ISIS Standard (Multi-splined for high-torque up to 120Nm e-MTB applications)
Key Features:
Lightweight & Strong: Hollow pocket skeleton design removes excess weight while maintaining maximum rigidity.
Optimized Clearance: 155mm length provides excellent ground clearance to prevent rock strikes.

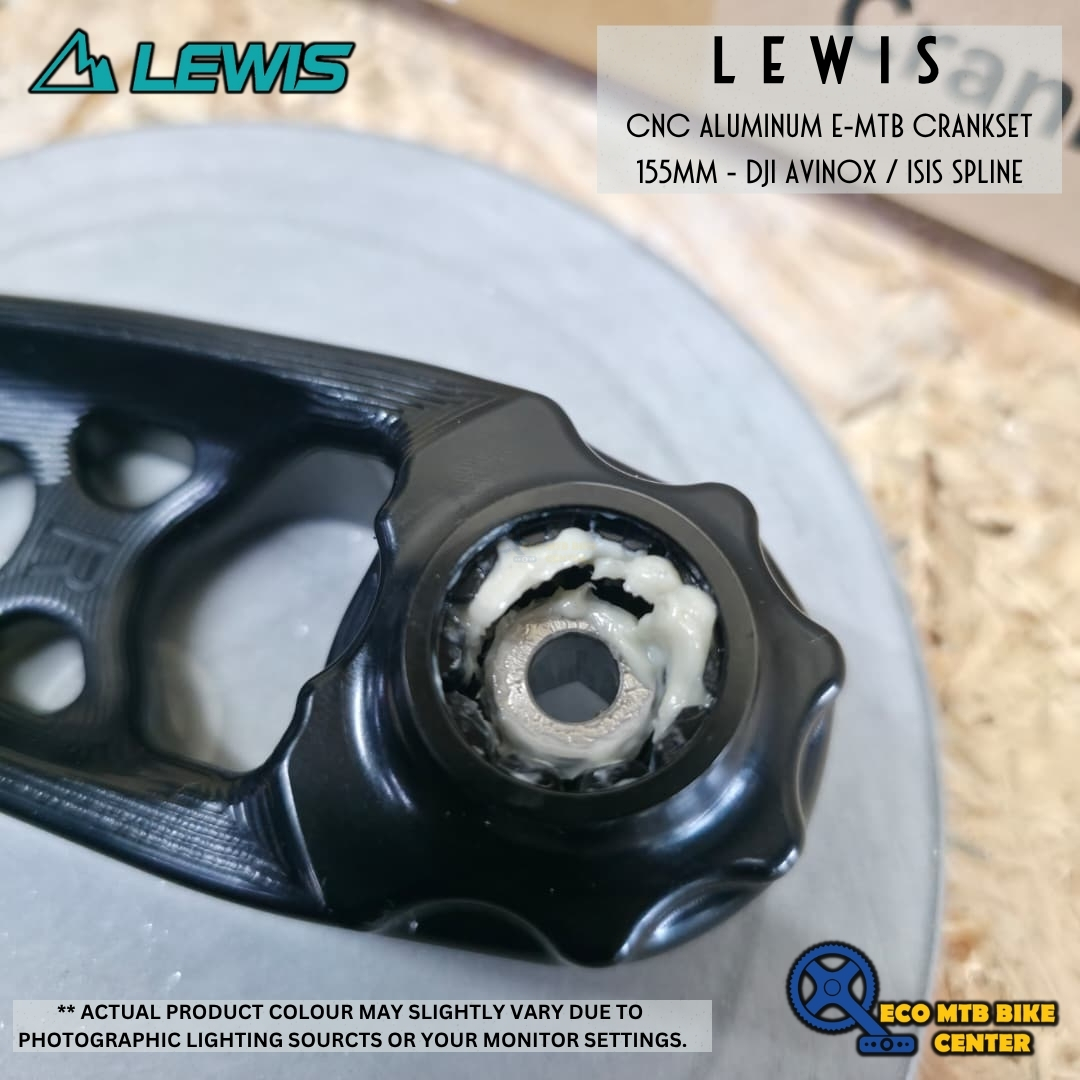

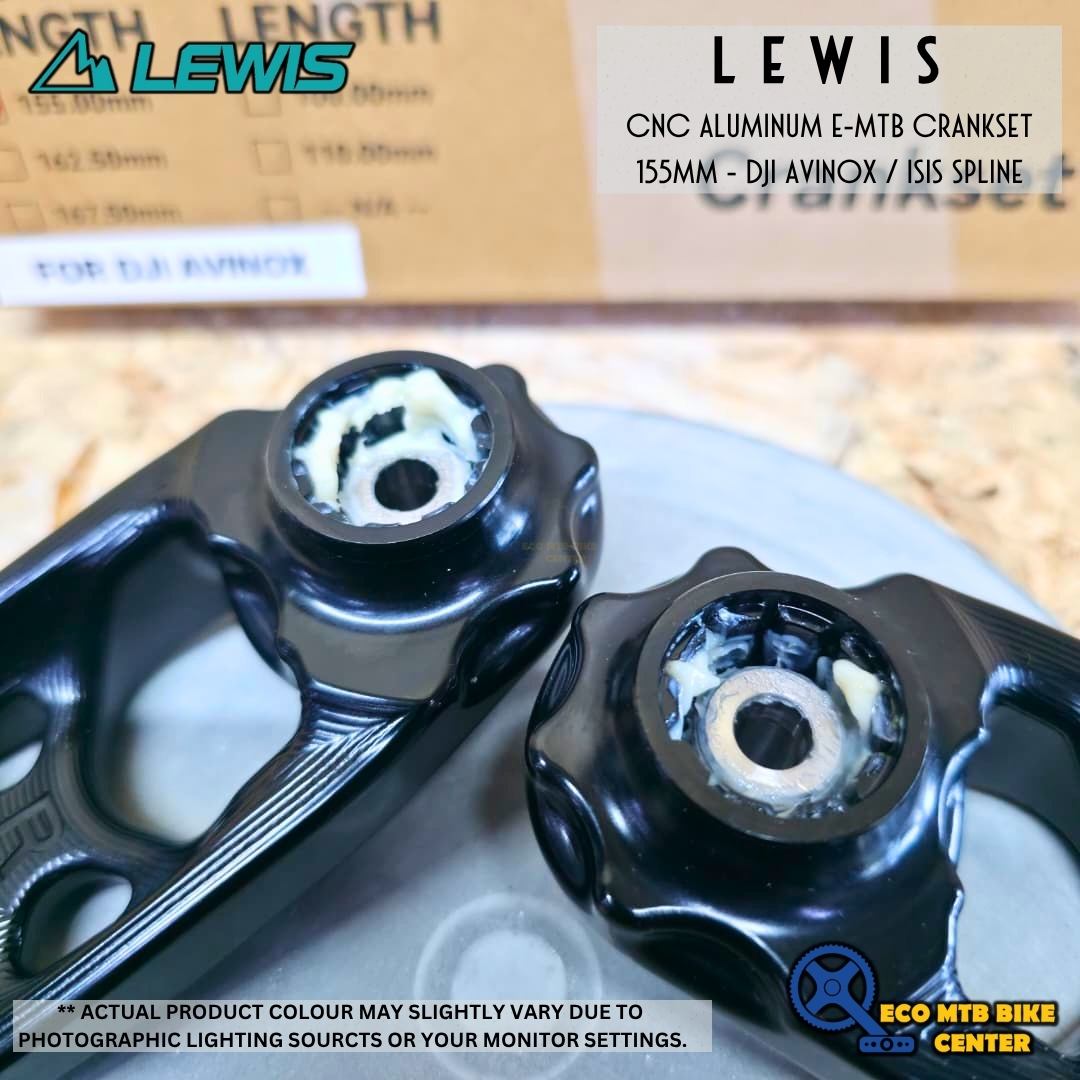

Pre-Greased: ISIS splines come factory pre-greased for immediate, creak-free installation.
Direct Fit: Engineered for direct power transfer and to handle the specific torque demands of the Avinox motor.
Torque Requirements:

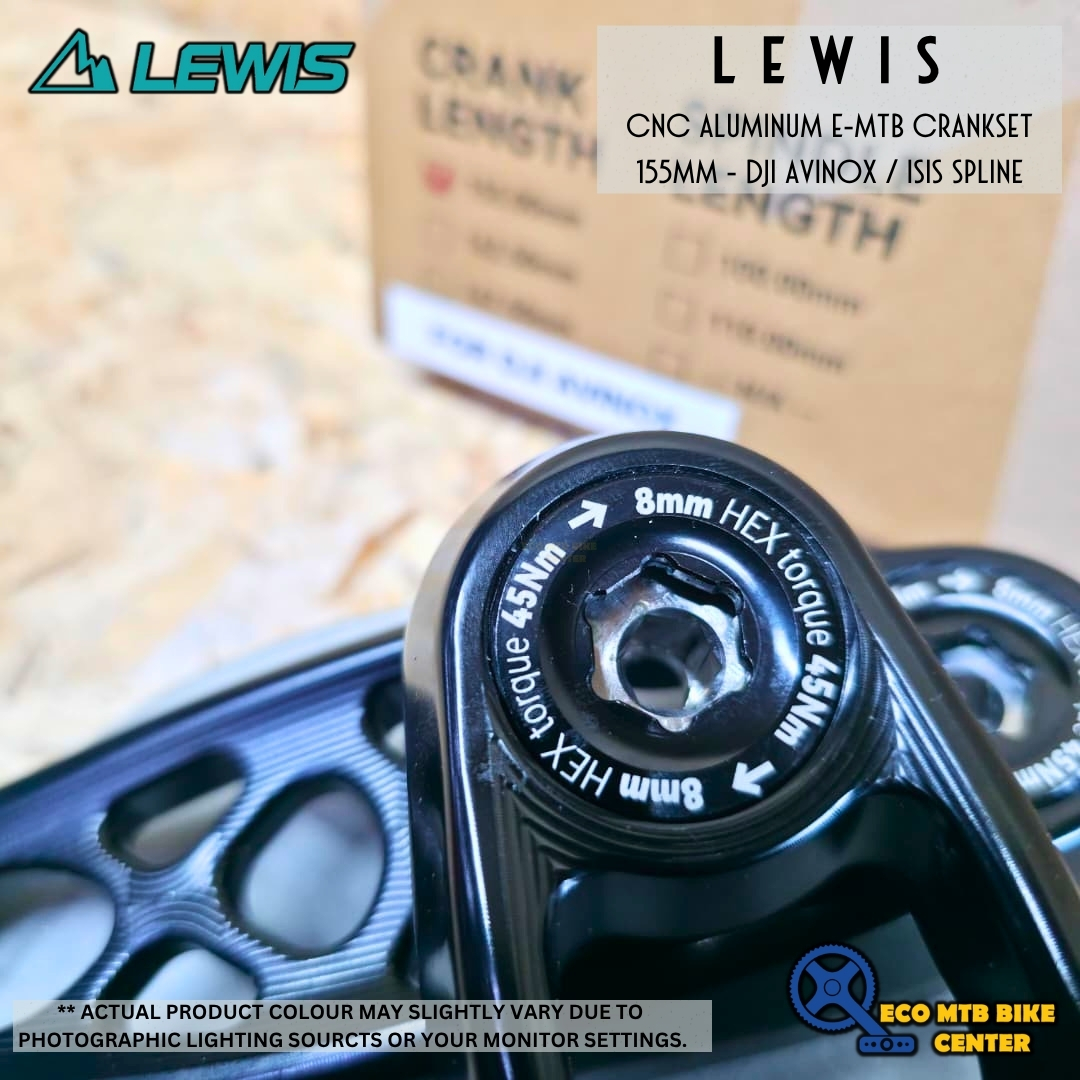

Crank Arm Bolt: 45 Nm (Requires 8mm HEX key)
Pedal Thread: 35 Nm
What is in the Box:
1 x Left LEWIS Crank Arm
1 x Right LEWIS Crank Arm
2 x 8mm Hex Crank Bolts (Pre-installed)
** There is 1-3cm errors due to manual measurement. Please kindly understand.
** Actual product colour may slightly vary due to photographic lighting sources or your monitor settings.
