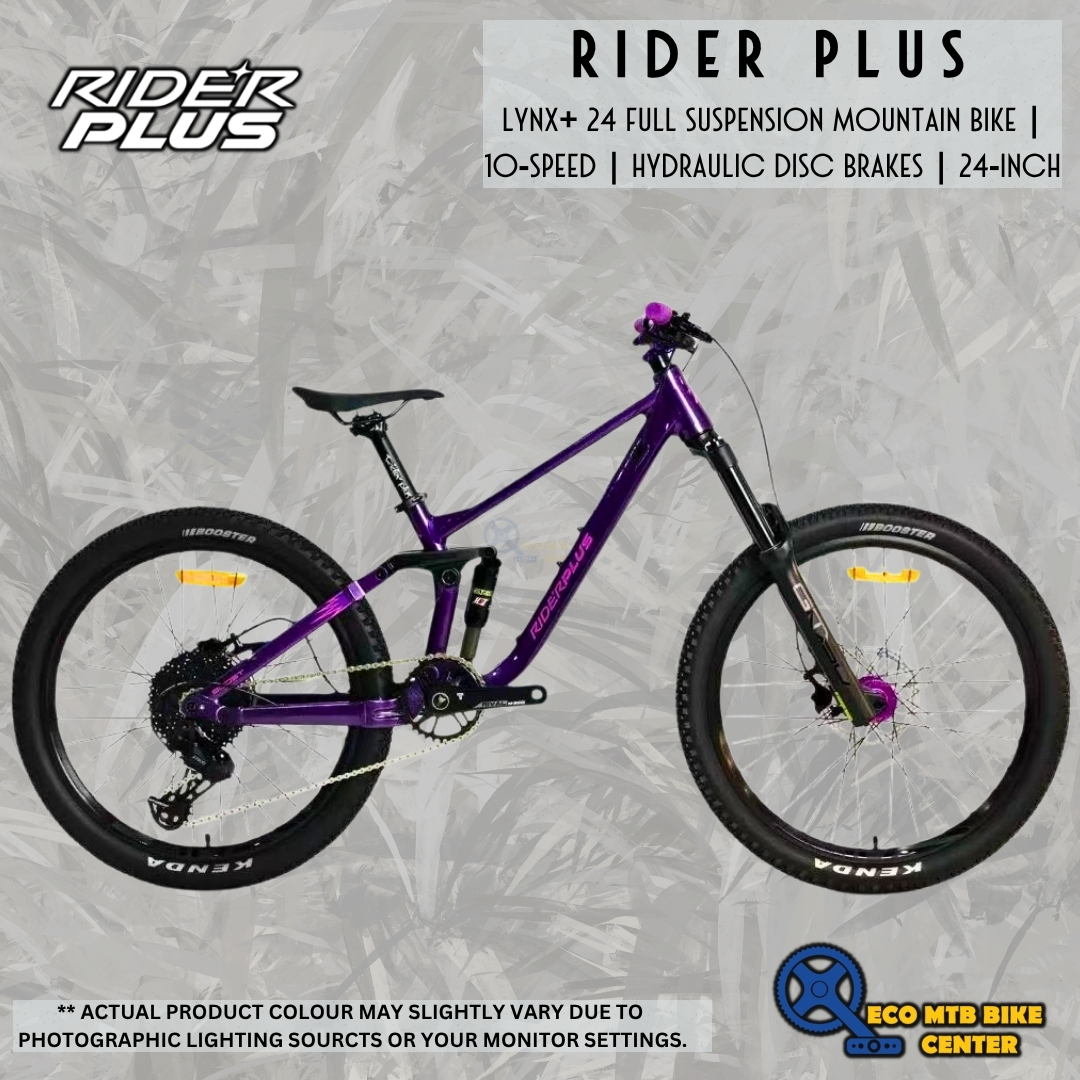

Take youth trail riding to the absolute maximum with the RIDERPLUS LYNX+ 24". This isn't just a standard kids' bike—it is a scaled-down, fully capable trail machine built with aggressive modern geometry, a 1x10 wide-range drivetrain, and 140mm of plush front travel. Equipped with premium CNC alloy components and hydraulic stopping power, this bike is built for serious off-road performance, jumps, and technical descents.
FRAME SIZING & GEOMETRY
Frame Size: 24-inch Boost Geometry
Seat Tube Length (C-T): 12.5" (Center-to-Top)
Design: Flat-weld technique at the head tube and center tube for a seamless, premium finish with internal cable routing.
COMPLETE TECHNICAL SPECIFICATIONS
SUSPENSION SYSTEM
Front Fork: GTMRK 24" Suspension Fork with Alloy Crown | 140mm Travel | Features Air Lockout

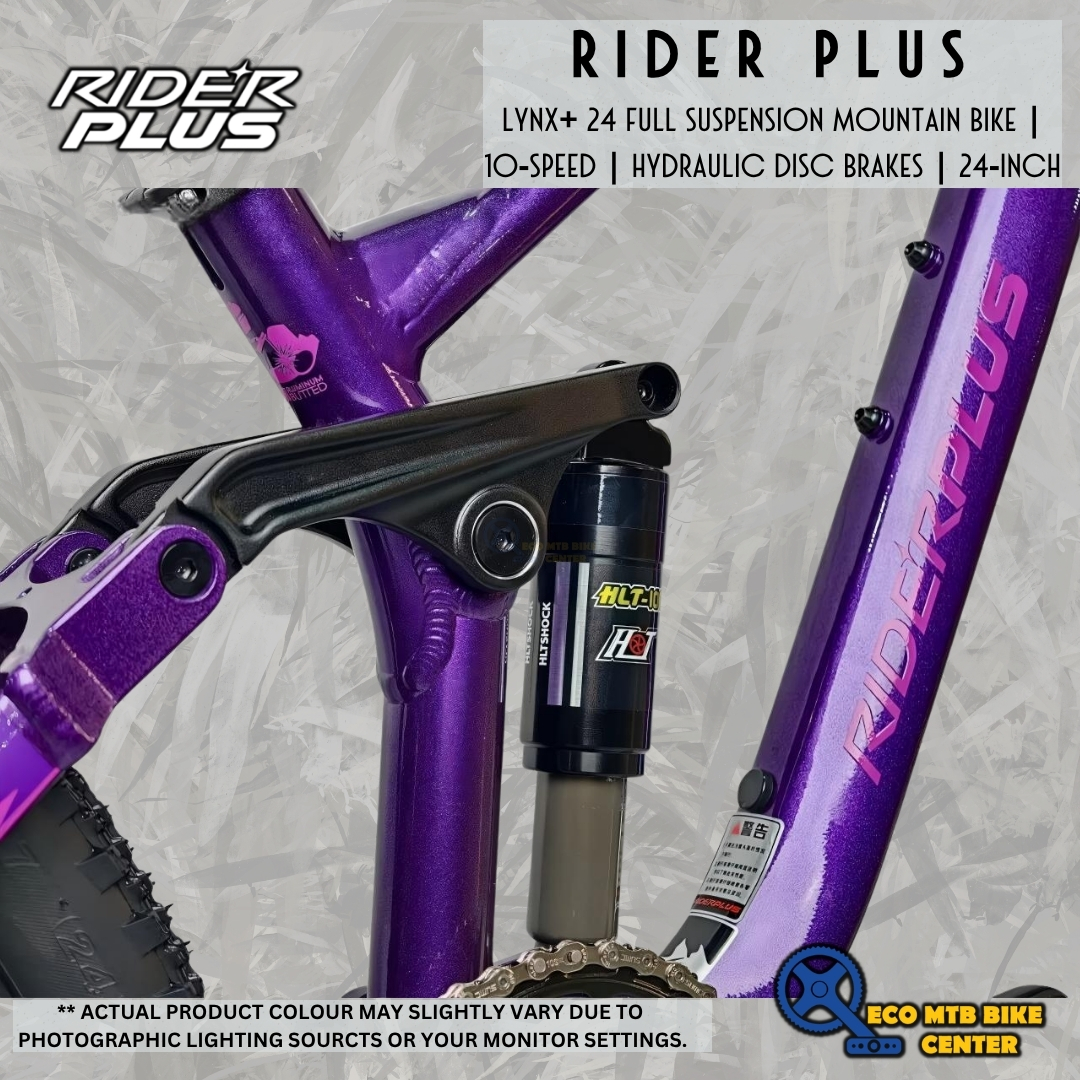

Rear Shock: SIEG / H.T. Air Pressure Shock | 190mm Eye-to-Eye Length/Stroke
DRIVETRAIN (1x10 SPEED)

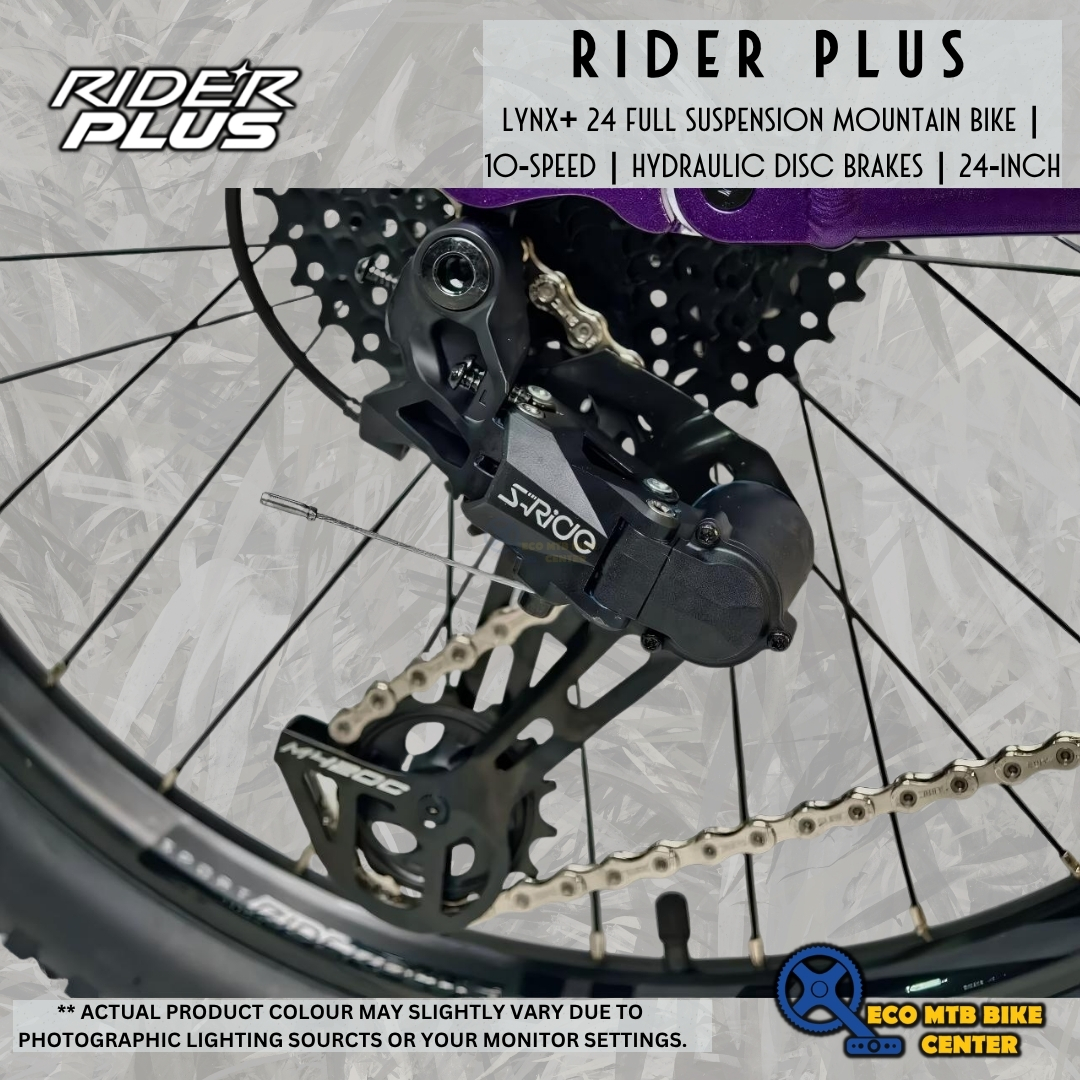

Rear Derailleur: S-RIDE RD-M420C (10-Speed, Direct Attach)
Shifter: S-RIDE SL-M320 (10-Speed Thumb Shifter)

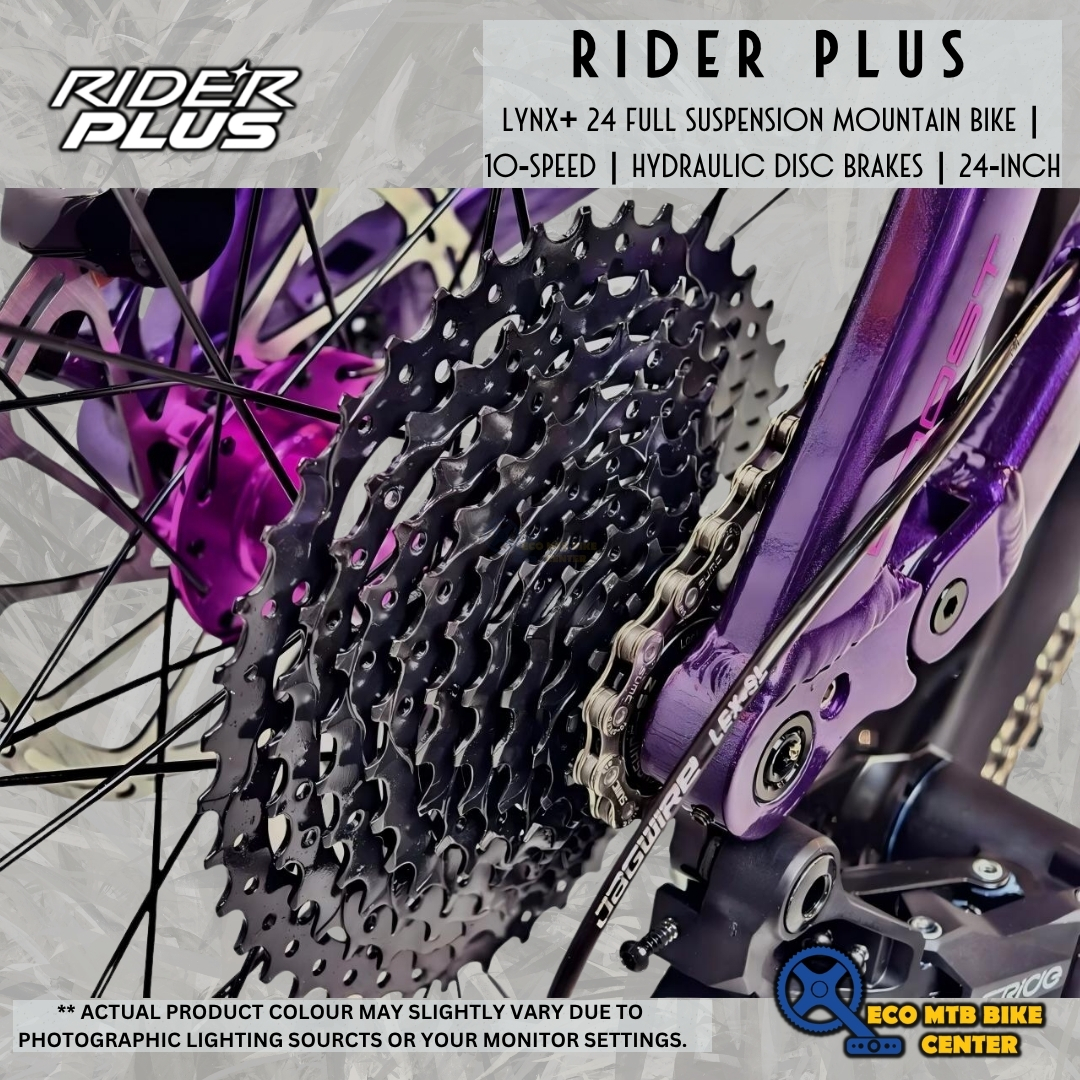

Cassette/Freewheel: SUNSHINE 10-Speed Cassette (Wide Ratio 11-42T)

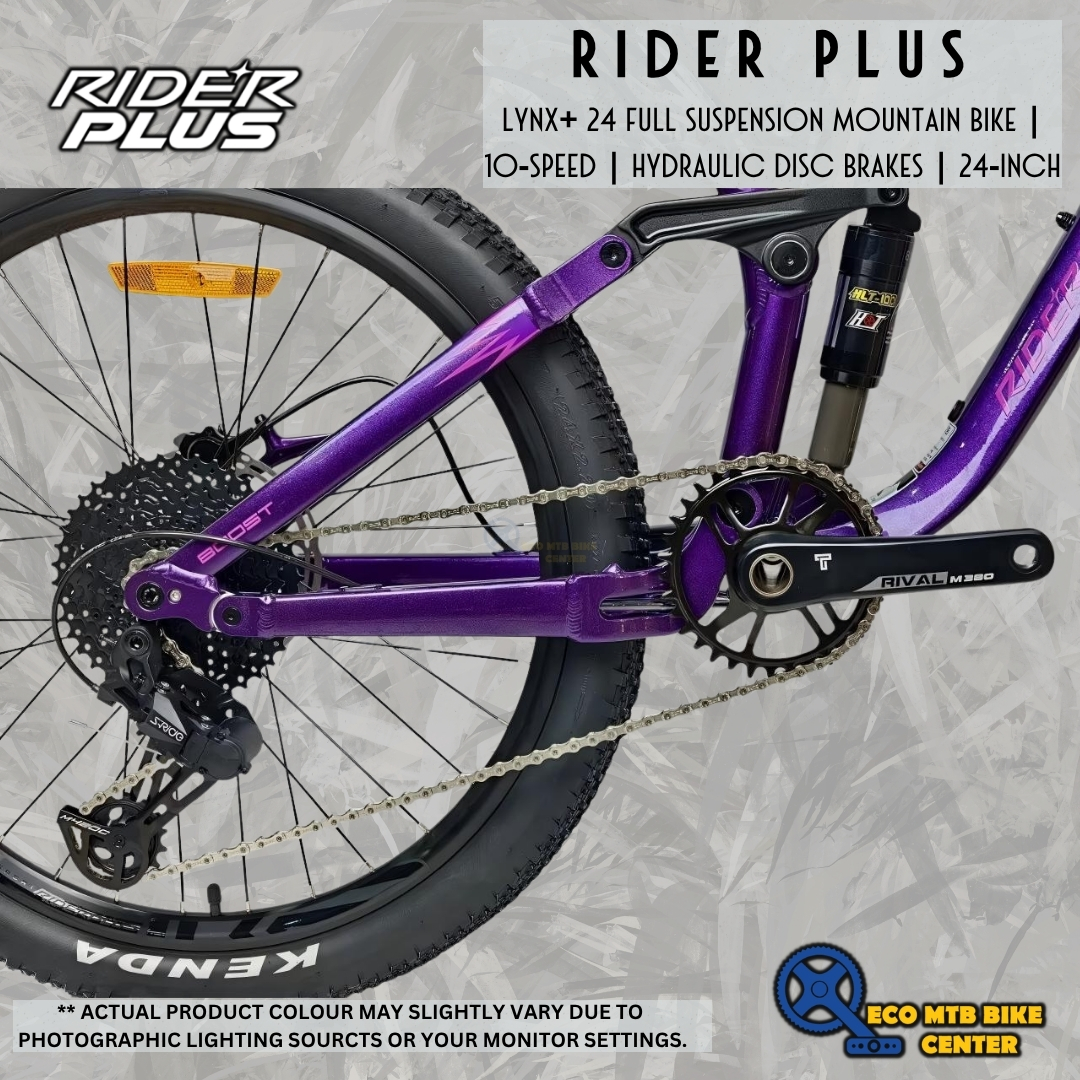

Crankset: TCYCLE / RIVAL M300 Alloy Crank | 34T Narrow-Wide Chainring | 152mm Crank Arm Length (152L)
Chain: SUMC 1/2" x 3/32" 10-Speed Chain
Bottom Bracket: Sealed bearing (integrated with crankset)
BRAKES
Brake System: IIIPRO Full Hydraulic Disc Brakes (Mineral Oil)
Calipers: IIIPRO Alloy CNC 2-Piston
Rotors: 160mm 6-bolt stainless steel rotors (Front & Rear)
Housing: Premium 2P Shift/Brake Cable Housing (Jagwire LEX-SL compatible)
COCKPIT & CONTROLS

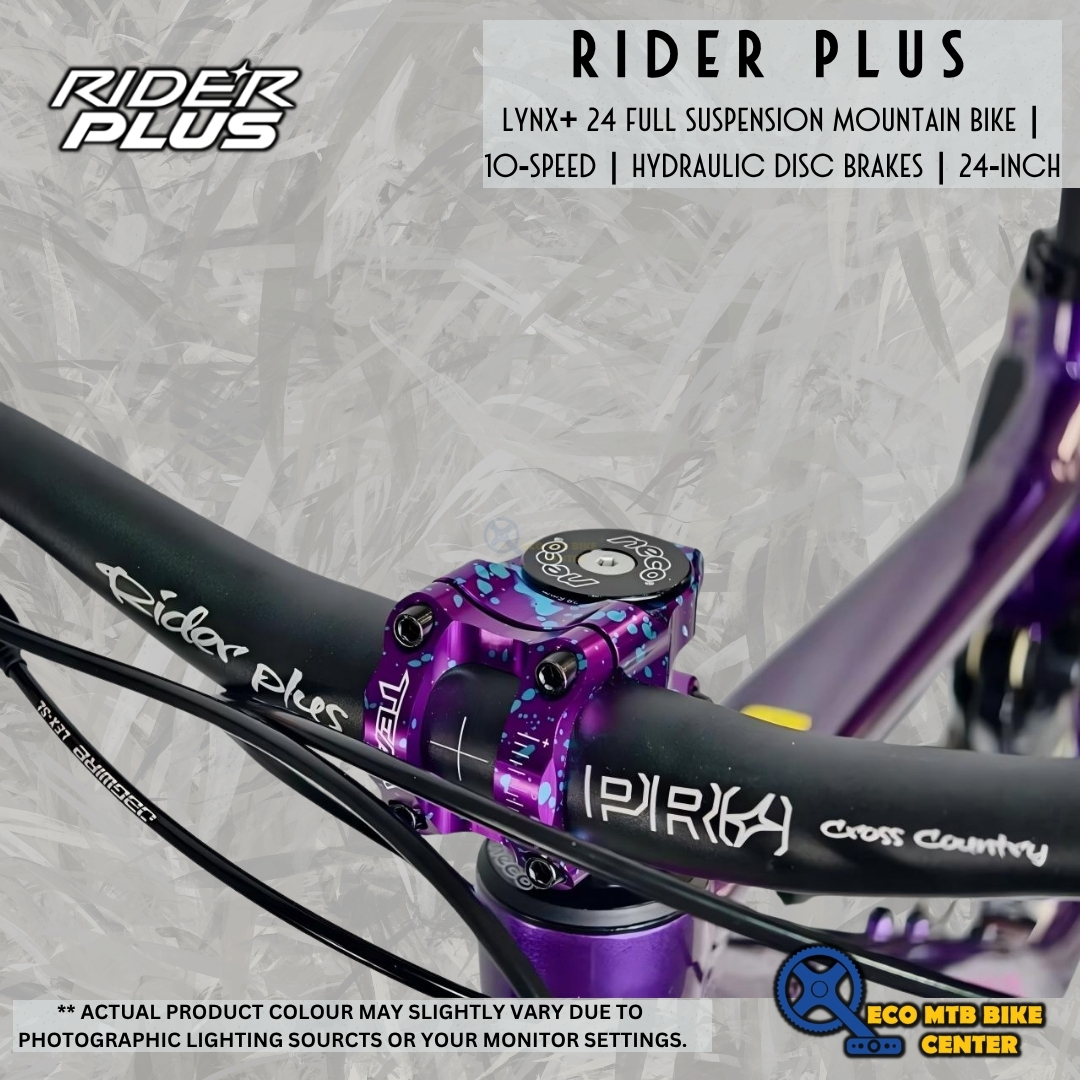

Handlebar: TCYCLE / PIRANHA Alloy Riser Bar | 660mm Width | 31.8mm Clamp | 7° Backsweep | 25mm Rise
Stem: Alloy Short-Reach Stem (Custom Splatter Anodized) | 35mm Extension (35E) | 0° Angle | 31.8mm Clamp
Headset: NECO Threadless (1-1/8 * 44 * 56 * 39.8mm) with alloy washers (9.9mm height)
Grips: Premium Textured Rubber Grips with Alloy Lock-on Rings

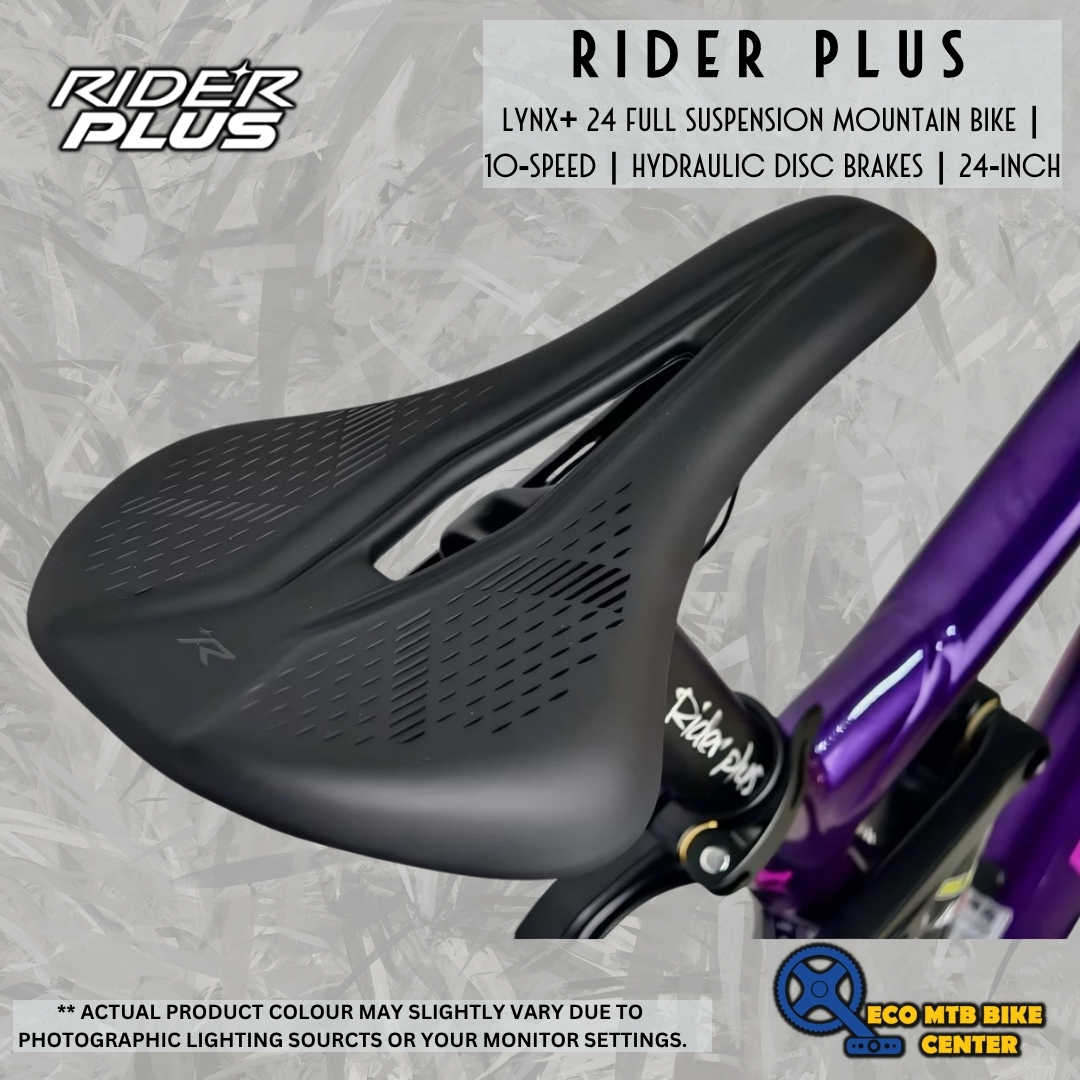

Saddle: R-Series Sport Ergonomic MTB Saddle with ED rail and clamp
Seatpost: Alloy Seatpost | 31.6mm Diameter x 250mm Length
Seat Clamp: Alloy Quick Release (QR) Type
WHEELS & TIRES
Tires: KENDA Booster 24" x 2.2" width | 30 TPI aggressive off-road tread
Inner Tubes: 24" x 2.2" Rubber with A/V (Schrader Valve)
Rims: 24" Alloy Double Wall | 32-Hole | 14G Spokes

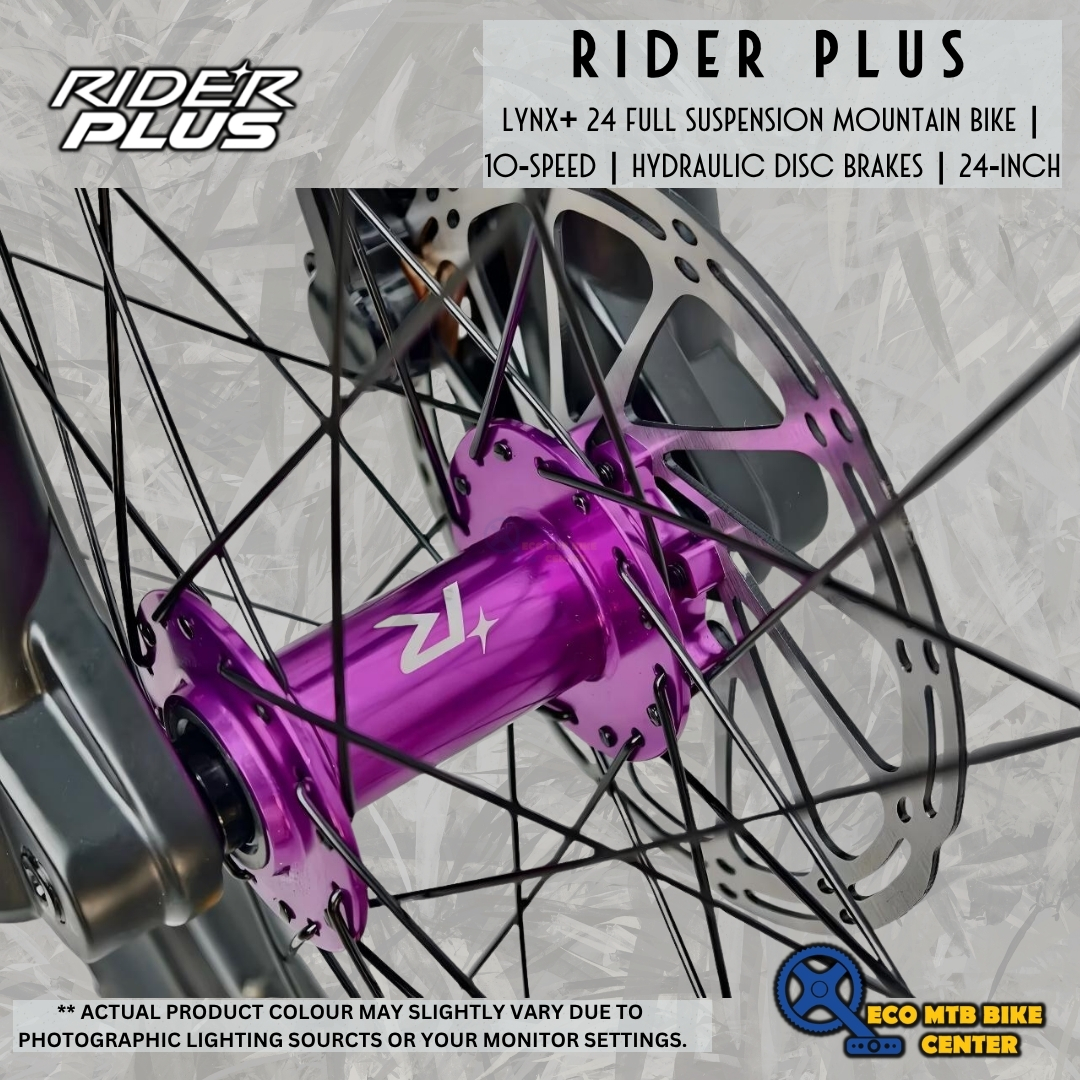

Front Hub: Premium Alloy 2-Bearing Hub | M15 x 110mm | 32H (Color-matched purple)
Rear Hub: Premium Alloy 4-Bearing Hub | M15 x 110mm | 32H
Spokes: ED Black Spokes with Steel Nipples (14G)
EXTRAS INCLUDED
Pedals: SYUN Plastic Platform Pedals with ball bearings and reflectors
Reflectors: Front (White), Rear (Red), and Wheel Reflector (White) included

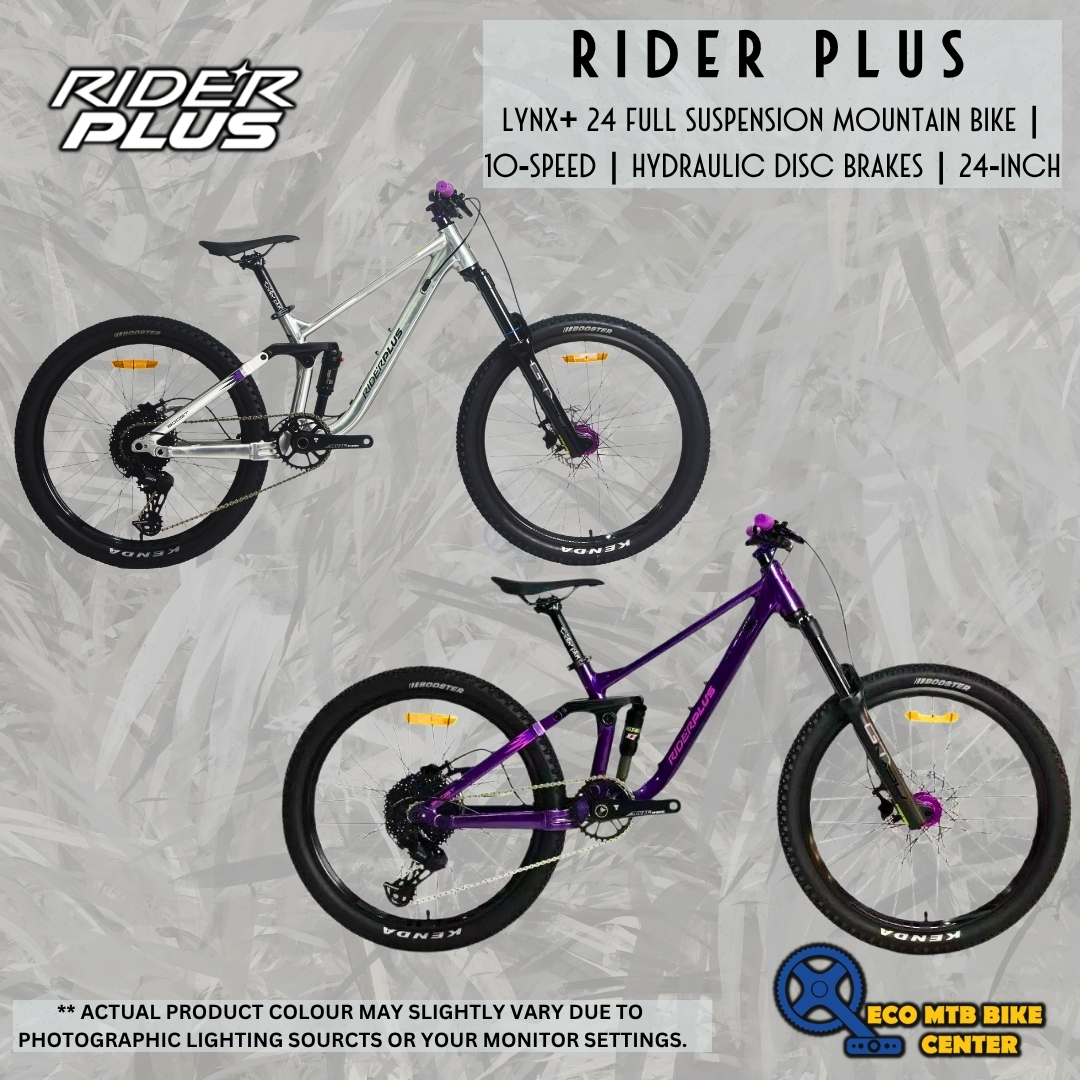

AVAILABLE COLORWAYS

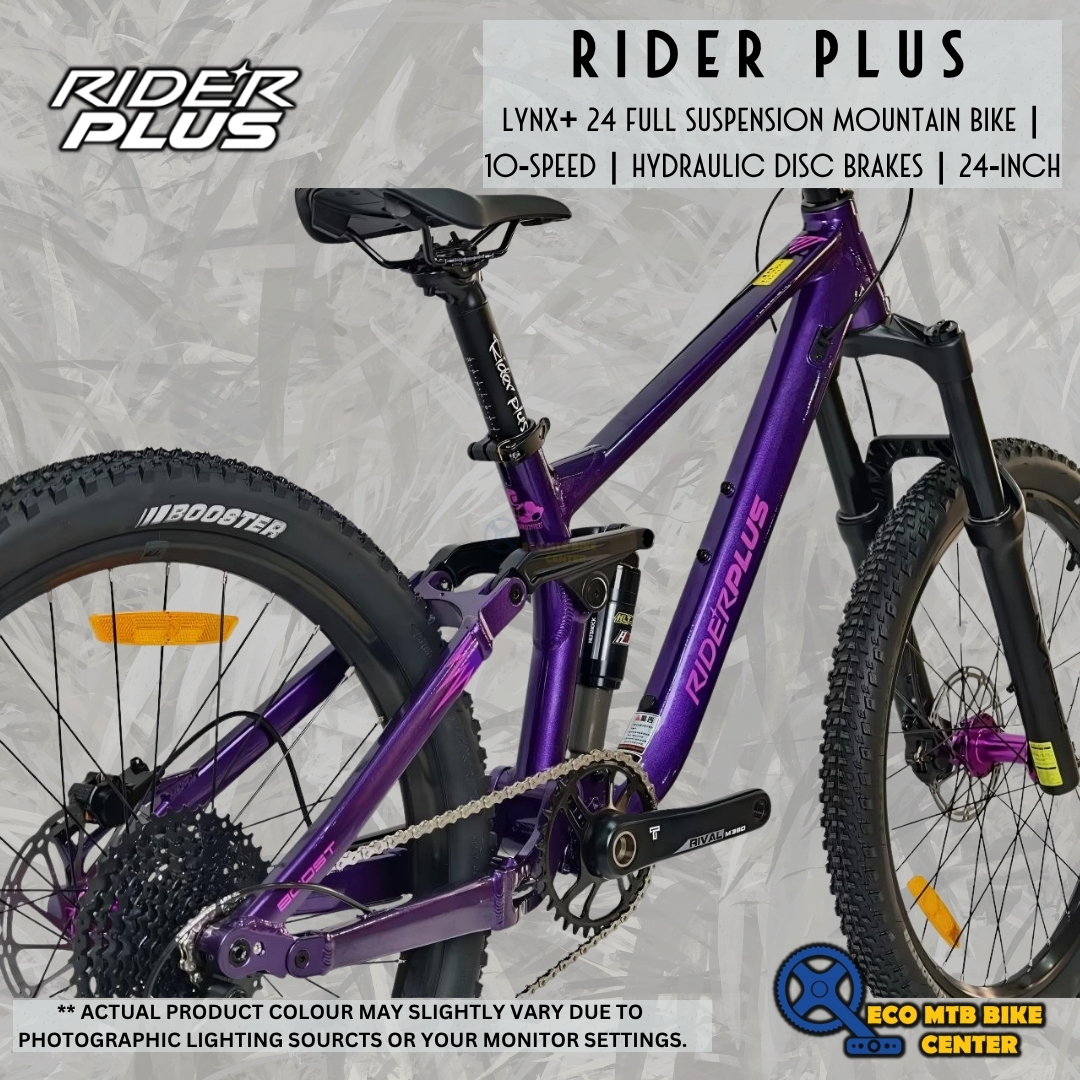

Metallic Purple: Full metallic purple frame, purple/cyan splatter stem, purple hubs, and purple lock-on grips.

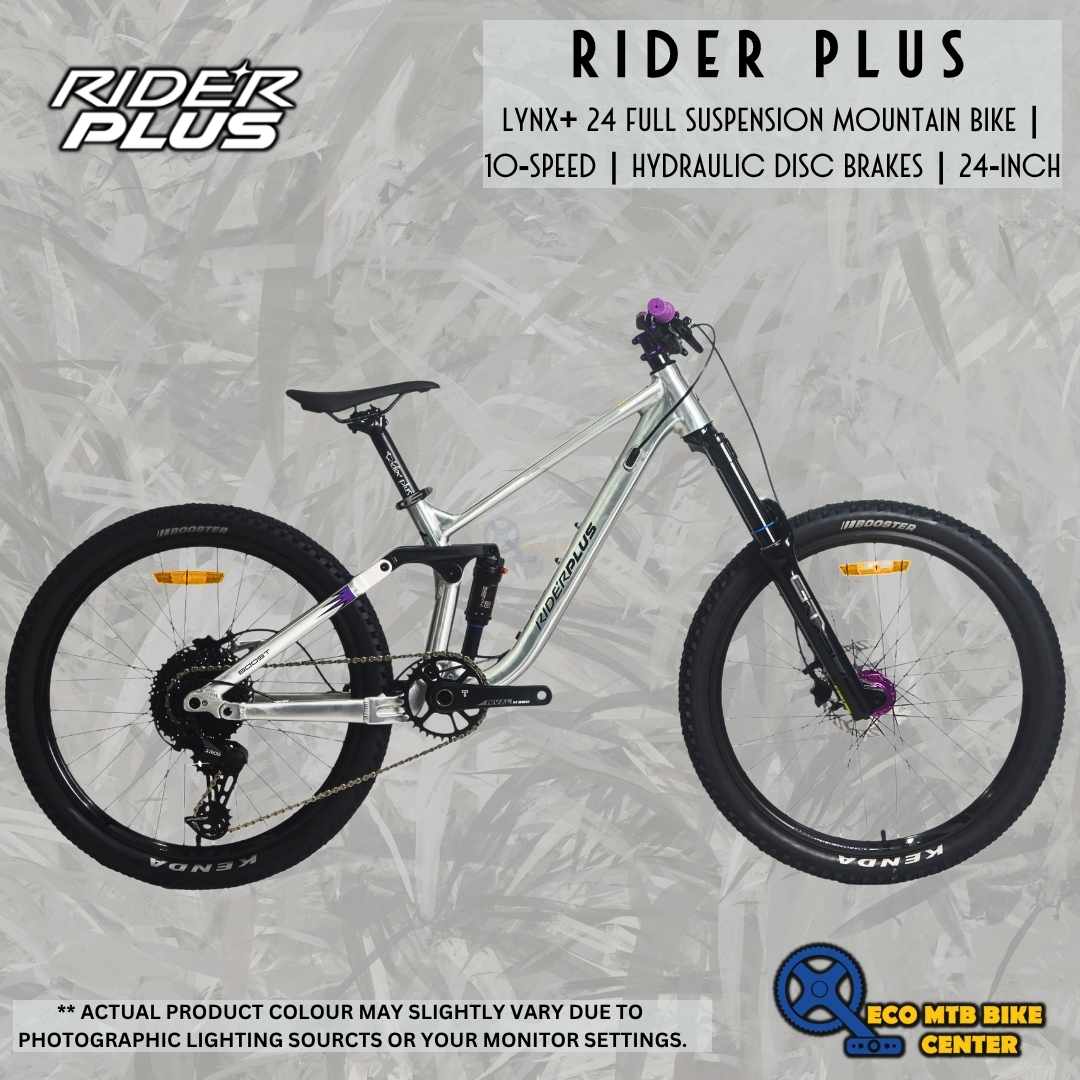

Raw Silver: Raw silver frame with contrasting purple/cyan splatter stem, purple hubs, and purple lock-on grips.
** There is 1-3cm errors due to manual measurement. Please kindly understand.
** Actual product colour may slightly vary due to photographic lighting sources or your monitor settings.
