Product Description:

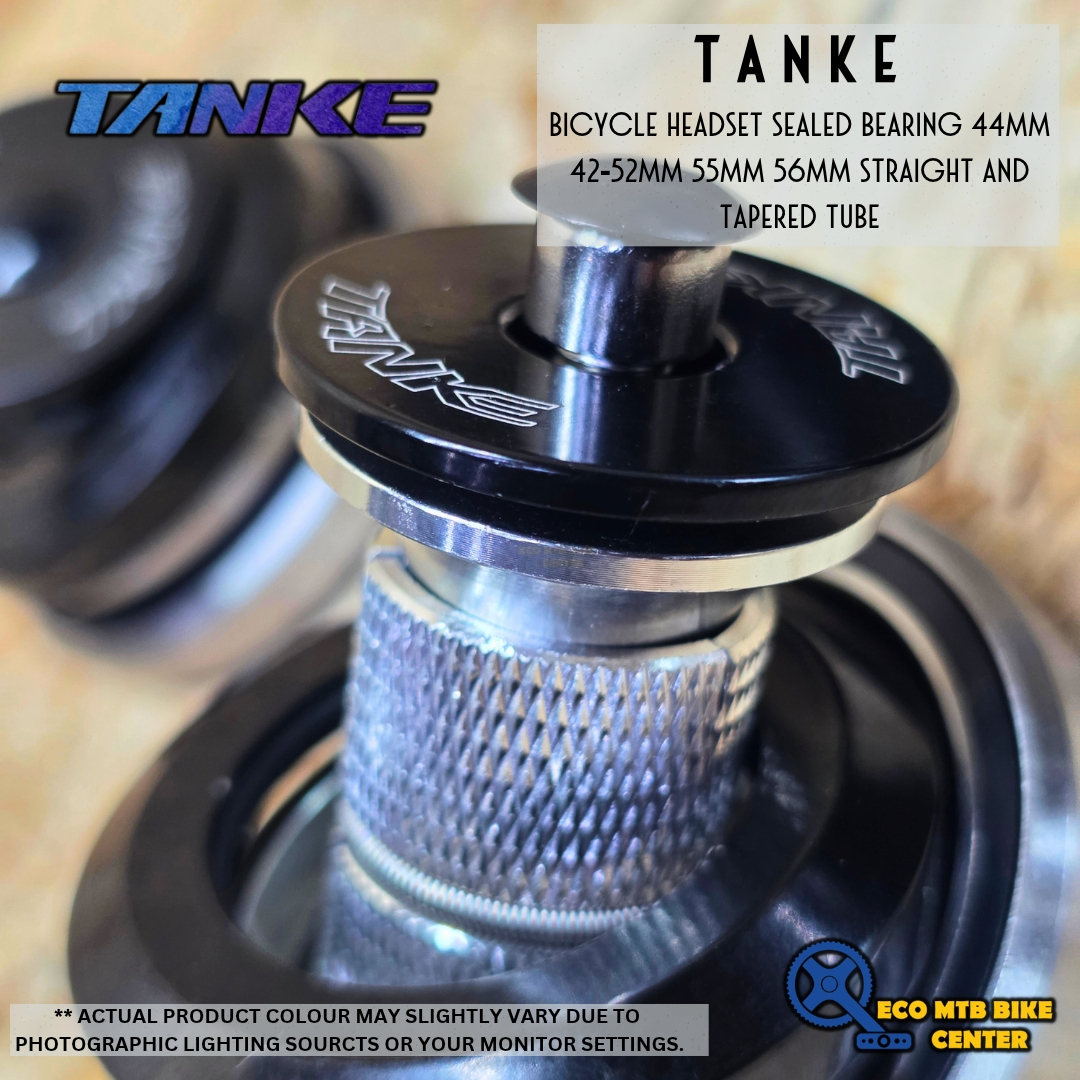

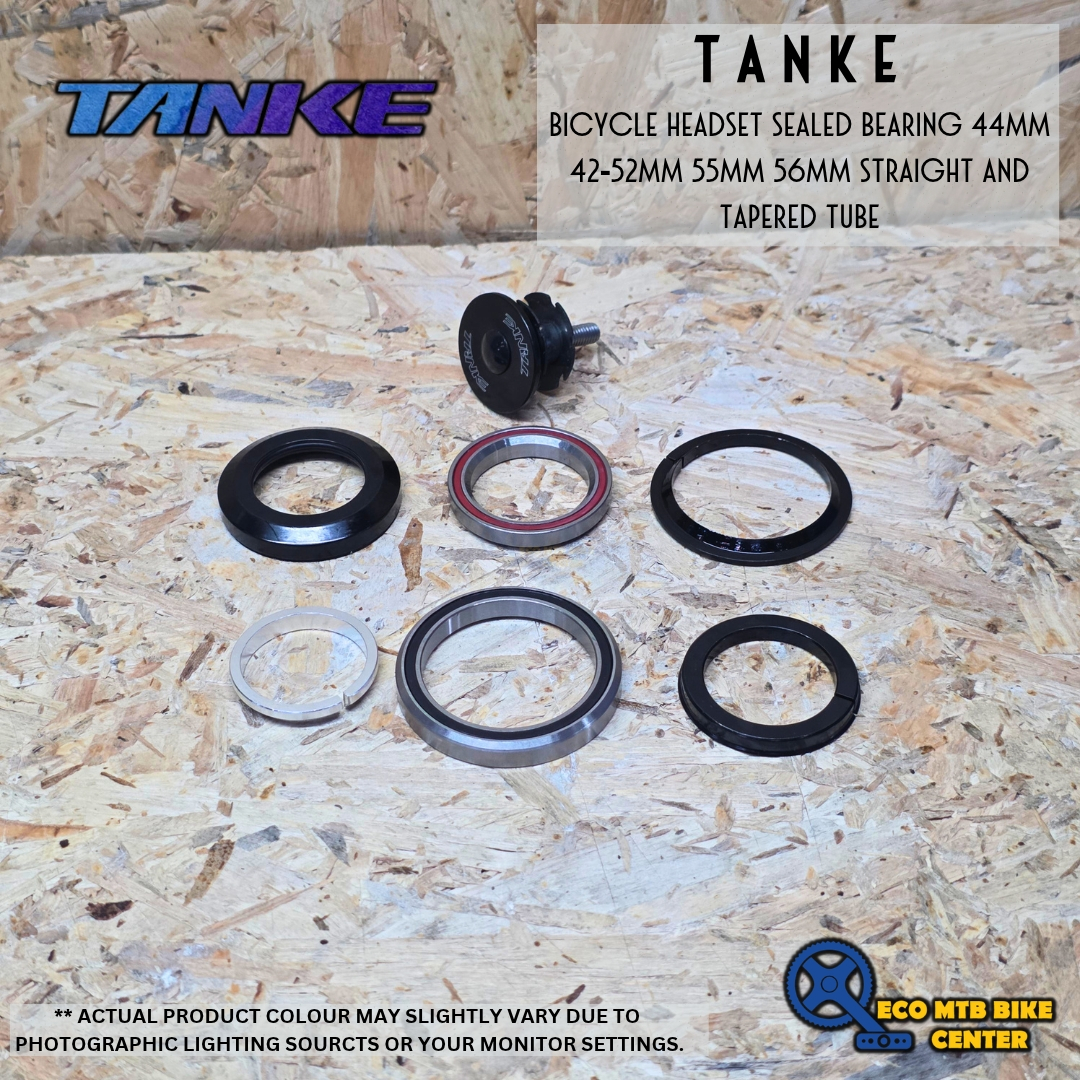

Upgrade your bicycle's steering precision with a TANKE Sealed Bearing Headset. Built with CNC-machined aluminum and high-quality sealed cartridge bearings, this headset prevents water and grit contamination for long-lasting, buttery-smooth steering.
Please read the technical guide below carefully to ensure you select the correct fitment for your frame and fork.
--- IMPORTANT BUYER'S GUIDE: CLEARING UP COMMON CONFUSIONS ---
How to Measure Correctly:
Do not guess your size. You must measure the INSIDE diameter of your bicycle frame's head tube (both top and bottom) using a digital caliper.
Integrated (IS) vs. Cups (ZS/EC):
If your frame is "Integrated" (commonly 42-52mm), you do not need metal cups. The bare bearings drop directly into the carbon or alloy frame.
If your frame is not integrated (like 44mm, 55mm, or 56mm), the headset will come with aluminum cups that must be hammered or pressed tightly into your frame first.
Star Nut vs. Carbon Expansion Plug:
Alloy/Steel Forks: Must use the standard metal Star Nut.
Carbon Fiber Forks: You MUST use the Carbon Expansion Plug version. Hammering a star nut into a carbon steerer tube will crack and destroy the carbon.
The 44mm Tapered Conversion Secret: If your frame has a straight 44mm tube top and bottom, but you want to install a modern Tapered fork (wider at the bottom), you must choose the "44-44 to Tapered" option. It uses an External Cup (EC) that sits outside the frame to hold the larger lower bearing.
VARIATIONS & SPECIFICATIONS
Option 1: 44-44mm Straight
Fitment: Frame inner diameter 44mm top / 44mm bottom.
Fork: Fits standard 1-1/8" straight steerer forks.
Type: ZS44/28.6 | ZS44/30 (Zero Stack).
Option 2: 44-44 to Tapered
Fitment: Frame inner diameter 44mm top / 44mm bottom.
Fork: Fits modern Tapered forks (1-1/8" to 1.5").
Type: ZS44/28.6 | EC44/40 (External Cup Bottom).
Option 3: 44-55mm Tapered
Fitment: Frame inner diameter 44mm top / 55mm bottom.
Fork: Fits Tapered forks (1-1/8" to 1.5").
Type: ZS44/28.6 | ZS55/40 (Zero Stack).
Option 4: 44-56mm Tapered
Fitment: Frame inner diameter 44mm top / 56mm bottom.
Fork: Fits Tapered forks (1-1/8" to 1.5").
Type: ZS44/28.6 | ZS56/40 (Zero Stack).
Option 5: 42-52mm Star Nut
Fitment: Frame inner diameter 42mm top / 52mm bottom.
Fork: Tapered forks with Alloy/Steel steerer tubes.
Type: IS42/28.6 | IS52/40 (Integrated Standard).

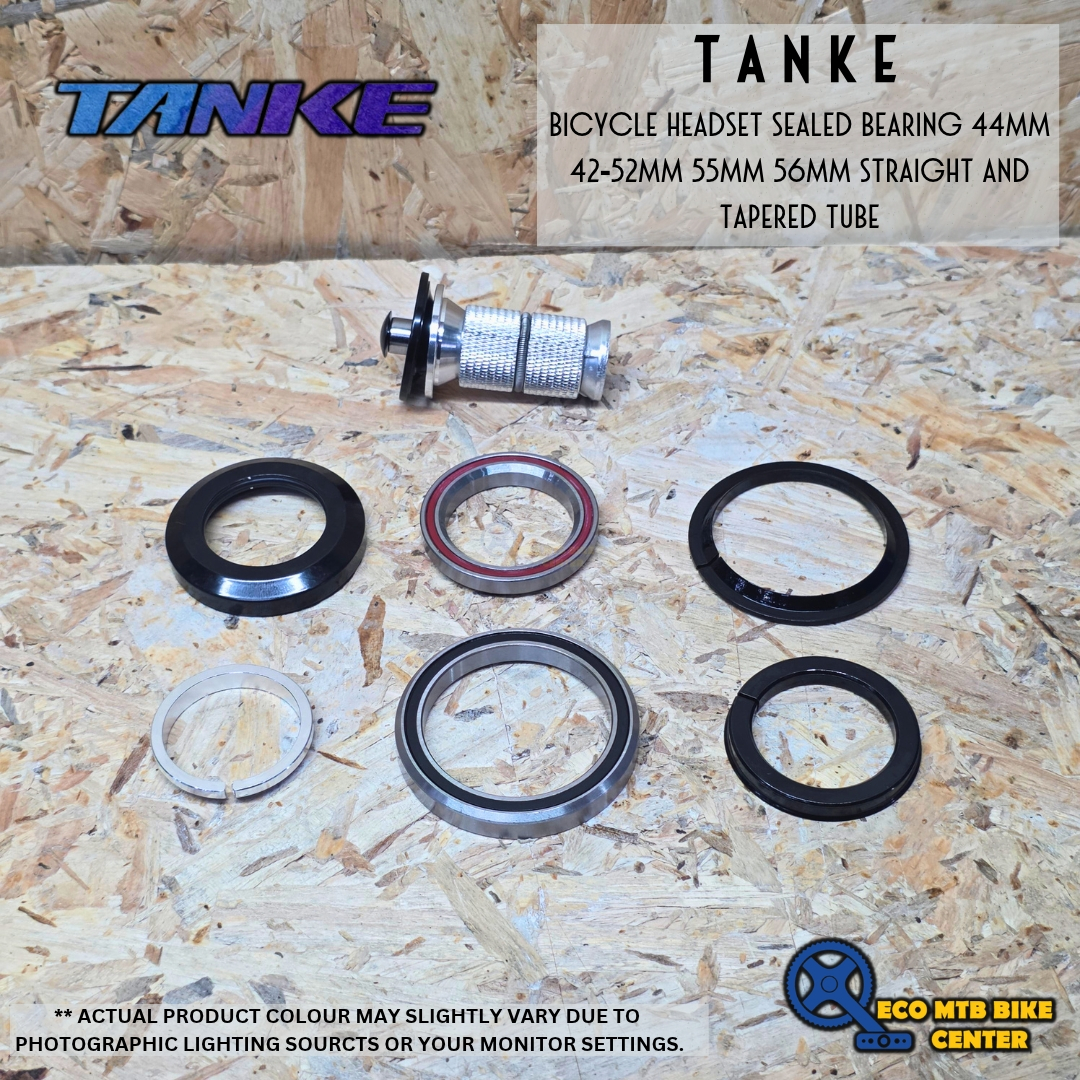

Option 6: 42-52mm Carbon Plug
Fitment: Frame inner diameter 42mm top / 52mm bottom.
Fork: Tapered forks with Carbon Fiber steerer tubes.
Type: IS42/28.6 | IS52/40 (Integrated Standard).
** There is 1-3cm errors due to manual measurement. Please kindly understand.
** Actual product colour may slightly vary due to photographic lighting sources or your monitor settings.
** WE DO NOT DO COD
** ONLINE ONLY
** We support original products only.
** PRICE INDICATED IS ALREADY BEST PRICE, EXCLUDE COURIER
|
